Using a barcode reader

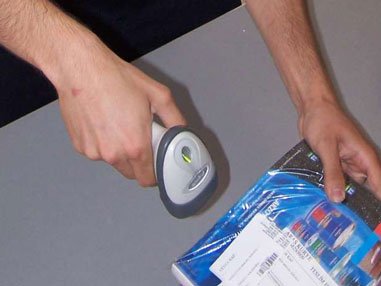

There are several common types of barcode readers - one is the handheld scanner which you pick up and move toward the barcode.  The laser or CCD light will either be on all the time, or will come on as a result of a sensor detecting movement. The beam of light will be scanning for a bar code. As soon as it finds one it will read it and then send the number of the code into the device it is attached to.

Another type of  barcode reader is a 'fixed mount' scanner. This can be mounted into a counter top and items to be scanned are then moved over the top of it, or it can be a device that is mounted to project a horizontal beam and items are then moved in front of it.    One advantage of the incounter scanner is that both hands are free to process items, which is why supermarkets primarily use fixed mount scanners. Some fixed mount scanners also include built-in scales.

A third type of barcode reader, no longer very popular, is the pen or wand. This device is much like a large pen that is pressed to the bar code label and then dragged across. The wand can read in either direction. Wands can only read 1 dimensional barcodes like Code 39, or UPC A. These can be useful in offices where the bar codes are generally printed on paper documents. Wands are the least expensive and take up little space. As a rule, it is difficult to use a wand on a curved surface. The technology used in wands may work well with black and white barcode labels, but not with color labels.

Here is an example of a 1 dimensional barcode.

The type of barcode reader you choose will depend upon a number of  factors including;

1. Price
2. The type of computer or terminal the reader will have to be attached to (compatibility)
3. The size of your retail counter and the need for speed or efficiency, or whether the bar code reader will be used in an office.   Barcode readers that will be used outside will also have special features including the ability to read barcodes in direct sunlight (think about glare), and weatherproofing.
4. The type of products you sell  ( whether they are all small enough to be put on a counter, or maybe too big or too heavy to be put on the counter by a shopper).   Also the color of the printed barcode labels.  Certain technologies do not read brown or red labels well.
5. The nature of your business, meaning the extent to which it is retail or service oriented.

For advice on the selection and installation of a barcode reader we recommend consulting with a local Value Added Reseller (VAR).
